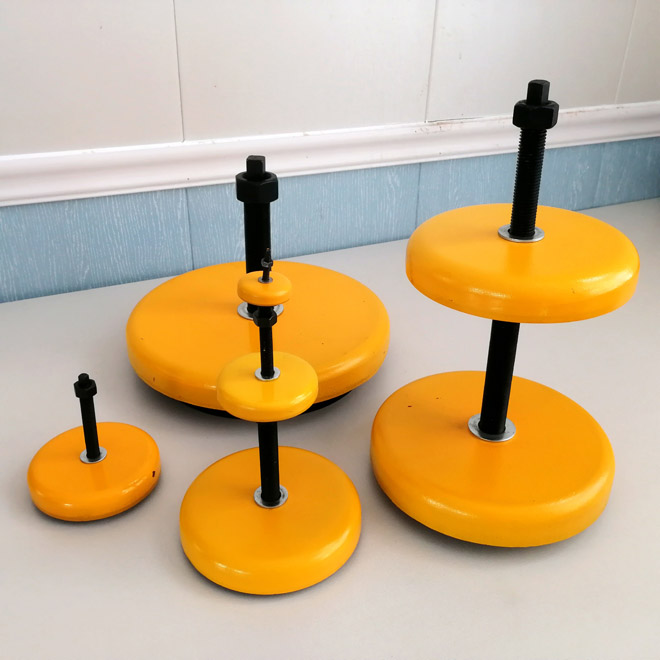

S78-10系列機床減振墊鐵適用范圍：
金屬切削機床、數控機床、鍛壓機床、橡膠機械、紡織、輕工機械、食品加工機械等加工中心。
S78-10系列機床減振墊鐵產品特點：
1、 安裝機床不需埋設地腳螺栓，縮短安裝周期，節(jié)省安裝費用。
2、 根據生產工藝變化，隨意調整機床位置，實現(xiàn)生產流水線柔性化設計。
3、 調整機床水平方便、迅速。
4、 隔振、減振、降低噪音。
5、 耐油性，耐腐蝕性強
Feature of product:
Machines are stationary on floor without anchors. Therefore the cost and time of installation can be greatly saved.
The layout of machines can be changed freely according to the modification of manufacturing process. So it is easy to design the flexible production line.
It is convenient and quick to adjust the level of machine.
Vibration and noise can be reduced and isolated by using this product.
It can resist oil and corrosion greatly.
注意事項：
1、 安裝調整設備水平時，應使每個墊鐵都受力，消除虛接觸點。
2、 車間地面平度相差大，墊鐵調整高度不能滿足時，應在低點位置的墊鐵和機床基座之間加裝平鋼板后，再進行水平調整。
3、 產品第一次使用，機床使用兩周后，應再調一次機床水平。
4、 機床調換位置時，起重前，應先卸下墊鐵。
Note:
1. Every mounts should have loads when adjust the level of machine .
2. Flat steel plate should be added between the lowest mount and base of machine when the level difference of floor is great and adjusting height of is not enough. Then level of machine can be adjusted .
3. The level of machine should be readjusted after two weeks in use when it is used firstly .
4. The mounts should be removed before the machine is lifted when the position of machine is changed .
|
型 號
|
S78-10-01
|
S78-10-02
|
S78-10-03
|
S78-10-04
|
S78-10-05
|
S78-10-06
|
S78-10-07
|
|
|
外徑（D）
|
mm
|
40
|
80
|
120
|
160
|
185
|
229
|
317
|
|
螺紋（d）
|
mm
|
M5
|
M10
|
M12
|
M16
|
M20
|
M24×1.5
|
M30×2
|
|
螺紋高度（L）
|
mm
|
30
|
80
|
100
|
120
|
130
|
180
|
200
|
|
底座高度（H）
|
mm
|
15
|
25
|
32
|
35
|
39
|
54
|
70
|
|
可調高度
|
mm
|
5
|
8
|
12
|
12
|
12
|
12
|
12
|
|
單件重量
|
kg
|
0.05
|
0.3
|
1.02
|
2.03
|
3.07
|
7.56
|
17.5
|
|
S78-10系列機床減振墊鐵常用設備選用表
|
||||||||
|
機床種類
|
單件最大承載（kg）
|
|||||||
|
沖 床
|
100次/分
|
/
|
/
|
420
|
800
|
2000
|
2800
|
4000
|
|
150次/分
|
/
|
/
|
260
|
400
|
1000
|
1400
|
1800
|
|
|
200次/分
|
/
|
/
|
180
|
200
|
450
|
900
|
1200
|
|
|
車 床
|
||||||||
